PN:90SF00G1-M01310

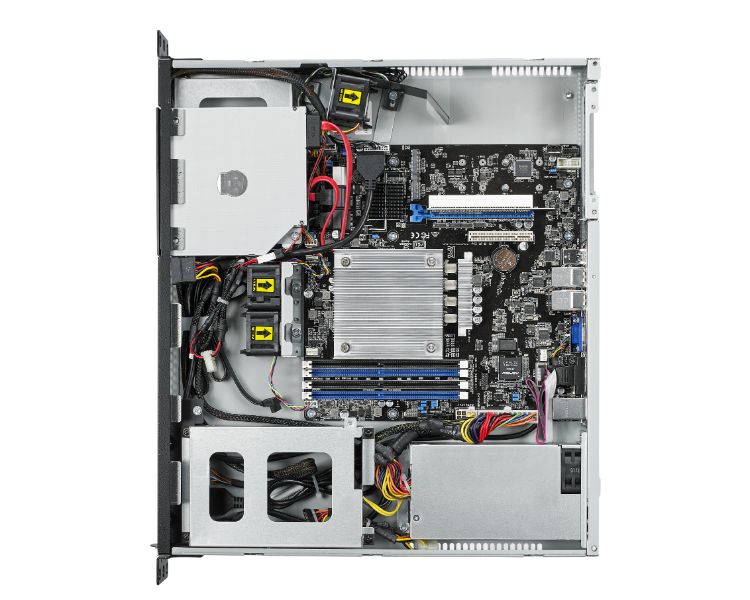

SERVIDOR ASUS RS100-E10-PI2

1151/C242/ASPEED AST2500/ 2xVGA / 1U

625,39€ PVP

Comprar

Consultar

● Gráfica dedicada: Aspeed AST2500 ● Imagen Salida: Si ● Medidas: 380 x 430 x 44 mm (1U) ● Memoria Gráfica (VRAM): 32 MB ● Microprocesador Integrado: No ● Nº Bancos De Memoria: 04 ● Nº Conexiones SATA: 04 ● Tecnologia De Memoria: DDR4 ECC

PN:90SF00G1-M01310

SERVIDOR ASUS RS100-E10-PI2

1151/C242/ASPEED AST2500/ 2xVGA / 1U

625,39€ PVP

Comprar

Consultar

●Gráfica dedicada: Aspeed AST2500
●Imagen Salida: Si
●Medidas: 380 x 430 x 44 mm (1U)
●Memoria Gráfica (VRAM): 32 MB
●Microprocesador Integrado: No
●Nº Bancos De Memoria: 04
●Nº Conexiones SATA: 04
●Tecnologia De Memoria: DDR4 ECC

Especificacones:

Processor / System Bus

1 x Socket LGA1151
Intel® Xeon® processor E-2100 family
Intel® Xeon® processor E-2200 family
The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor
*Refer to support page for more information

Generation

E10

Core Logic

Intel® C242 Chipset

Memory

Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM
Memory Type :
DDR4 2666/2400 UDIMM non ECC and with ECC
Memory Size :
32GB, 16GB, 8GB, 4GB UDIMM
* Refer to support page for more information

Expansion Slots

Total PCI/PCI-X/PCIe/PIKE Slots: 1
1 x PCIe x16 (x16 Gen3 Link)

Storage

SATA Controller :
Intel® C242 Chipset
2 x Internal 3.5” HDD
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1 )

Drive Bays

with ODD, up to 2 x3.5" disk bay or option 1x3.5"+2x2.5" disk bay support
without ODD, up to 2 x3.5" disk bay or option 1x3.5"+4x2.5" disk bay support

Auxiliary Storage FDD/CD/DVD

1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW

Networking

4 x Intel® I210AT + 1 x Mgmt LAN

Graphic

Aspeed AST2500 with 32MB VRAM

Front I/O Ports

2 x USB 3.0 ports
1 x VGA port

Rear I/O Ports

1 x External Serial Port
4 x RJ-45 ports
2 x USB 3.1 ports
2 x USB 3.0 ports
1 x VGA port
1 x RJ-45 ports (One for ASMB9-iKVM)(Optional)

Switch/LED

Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch

Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-4 LED

OS Support

Windows® Server 2016
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server
CentOS

*Subject to change without any notice

Management Solution

ASUS Control Center Enterprise (Optional)
Optional ASMB9-iKVM for KVM-over-IP

Regulatory Compliance

BSMI, CE, RCM, FCC(Class B)

Dimensions

380mm x 430mm x 44mm
14.96" x 16.93" x 1.73"

Form Factor

1U

Weight

Net Weight: 7.5 Kg
Gross Weight: 11.72 Kg

Power Supply

Single 250W 80 PLUS Gold Power Supply
Rating: 100-240Vac,4A ,50-60Hz, Class I
Single 350W 80 PLUS Gold Power Supply
Rating: 100-240Vac,6A-3A ,50-60Hz, Class I

Environment

Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)

Note

* 2 x M.2 (NGFF 22110/2280/2260/2242)
PCIE or SATA signal, gray SATA port will be disabled, when M.2 is used with SATA signal.

Only for Search

Rack Server

Las especificaciones e imágenes están sujetas a cambios sin previo aviso. Todas las marcas y logotipos son propiedad de sus respectivos fabricantes. La foto puede mostrar otros productos que se venden por separado.
